| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-F380 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Multiple Blade LED Strip Machine | Other Name: | LED Tube Light Separator |
|---|---|---|---|
| Voltage: | AC220V/110V,optional | Blade: | CAB Brand Circular Blade |
| Machine Power: | 200W | Warranty: | 1 Year |
| High Light: | pcb depaneling machine,v cut pcb depanelizer |
||

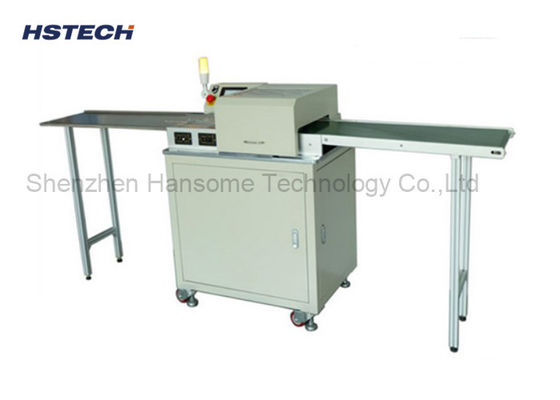

Multiple Blade Aluminum Board PCB Depaneling Machine for LED Strip / Tube light
Features
1, Multiple groups, multiple blade separating at the same time, greatly lower the separating force stress, protect the boards without bent.
2, SMEMA signal, connect with the PCB, achieve the automatic depaneling.
3, This machine designed for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.
4, PLC and touch screen control.
5, Infrared light curtain sensor, high security.
6, Using Japan high speed steel blade.
7, Min distance between balde is 3mm, blade thickness is 0.2mm.
8, High efficiency, saving labor, 100,000 pcs products production per day.
Specification
| Model | HS-F380 | |||||||
| Production name | Multiple blade PCB depaneling machine | |||||||
| Machine dimension | 2200mm×580mm×1060mm | |||||||
| Blade dimension | Circular blade ϕ60mm×35mm×3mm | |||||||
| Blade average lifespan | 1,000,000 times (1.2m long , 3mm thick PCB) | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Machine power | 200W | |||||||
| Air supply | No | |||||||
| Machine power | 90W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board/LED tube,aluminum baord and fiber glass boards | |||||||
| Weight | Around 160kg | |||||||
Details
