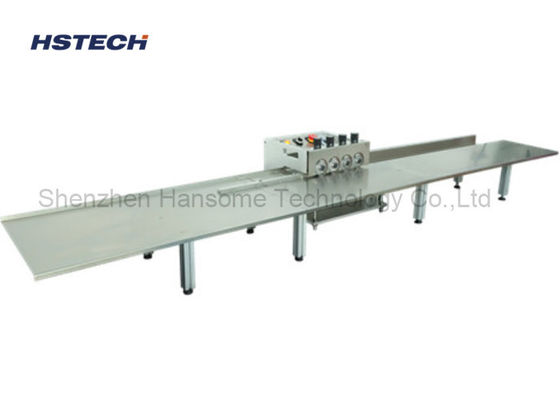

LED Hard Strip PCB Depaneling Equipment Using 1.2 Meter Platform 4 Groups Blade

LED Hard Strip PCB Depaneling Equipment Using 1.2 Meter Platform 4 Groups Blade
LED Hard Strip PCB Depaneling Equipment Using 1.2 Meter Platform 4 Groups Blade

Large Image :  LED Hard Strip PCB Depaneling Equipment Using 1.2 Meter Platform 4 Groups Blade

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-F306
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: LED Strip Separating Machine Other Name: High Speed LED Strip Separator
Voltage: AC220V/110V Pcb Thickness: 0.8mm -3mm
Material: Stainless Steel / Aluminum Usage: Aluminum Board,LED Board
High Light:

pcb depaneling machine

,

v cut pcb depanelizer

1.2Meter Platform 4 Groups Blade LED Hard Strip PCB Depaneling Machine



This machine use 4 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,step by step cutting, disperse the cutting force stress to each group blade, greatly lower down the force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.



Features



1, 4 groups blade separating, greatly lower the separating force stress, protect the boards without bent.

2, 4 groups blade step separating, make sure the board cutting surface smooth, without glitch.

3, Special new design balde, durable 2 times than normal blade, also the top and bottom blade can be adjusted accurately.

4, The whole machine is high precision, easy to maintenance, safety operation.

5, The platform length has options for 1.2meter and 2.4 meter, also the platform can be fed with a trough to collect the separated boards conveniently.

6, The platform height can be adjusted, range 0~50mm.



Specification



Model HS-F360
Production name 4 groups high speed strip separating machine
Machine dimension 390mm×400mm×330mm
Platform dimension 1200mm(or 2400mm)×426mm×200mm
Blade dimension Circular blade ϕ60mm×12mm×3mm
Separating thickness 0.8~3mm, 1/3 of the board thickness
Voltage AC220V/110V, 50/60Hz
Air supply No
Machine power 90W
Separating speed 1mm-2000mm/s
Separating length 100mm-unlimited
Separating width 4-100mm best, single board width,not whole pin board width
Suitable boards LED strip board,aluminum and fiber glass boards
Weight Around 40kg
