| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460BC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Surface Dust Cleaner | Color: | White |
|---|---|---|---|
| Power Supply: | AC100-230V | PLC: | MITSUBISHI |
| Relay: | Schneider | Optoelectric Switch: | OMRON |
| Ion Wind Bar: | Keyence | Condition: | New |
| Material: | Stainless Steel |

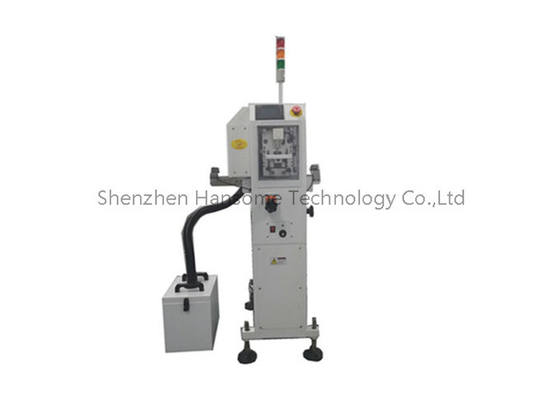

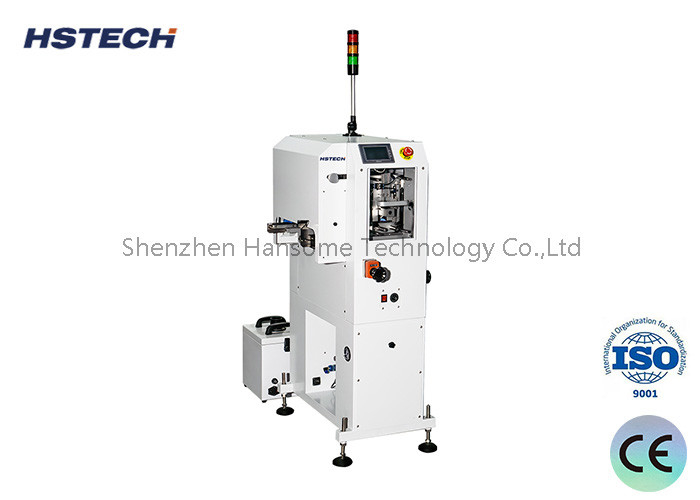

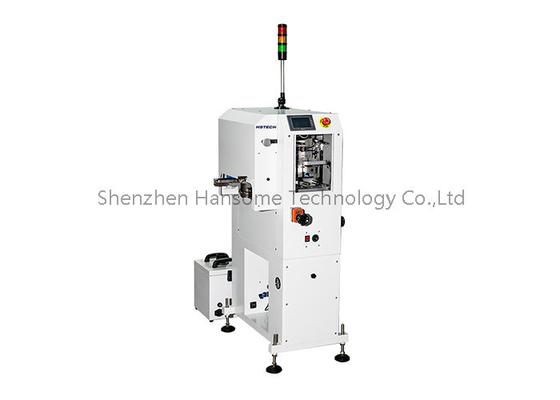

PCB Handling Equipment with Brush Sticker Roller PCB Cleaning Machine
Introduction
This In-line PCB Surface clean machine used for PCB before printing solder paste and red glue to remove surface small chip , dust,fiber,hair,skin debris and metal particles etc.other things.Eliminate PCB board static to reduce the bad printing and foreign object caused cold welding ,missing weld,camber and deflection welding, improve products quality .Greatly reduce rework and bad quality return rate.Especially suitable for place 0402,0201etc small components and QFP,BGA,CSP precision components.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1, According to the SMT production line requirements develop and design equipment.
2, PLC control system.
3, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
4, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
5, Equipped with the Keyence brand static climinators, completely eliminate electrostatic interference.
6, Touching clean method, cleanness above 99%.
7, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
8, Mechanical parts draw-out design, maintenance is simple.
9, Interface display in English and Chinese, interface operation convenient and simple.
10, SMEMA signal compatible.
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
