Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-GH350 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | SMT Line SPI AOI Buffer | Warranty: | 1 Year |
---|---|---|---|
Control: | Touch Screen | Material: | Aluminum Alloy |
Power Consumption: | 200W | Speed: | 200-300pcs/min |
Weight: | 220/240KG | Air Pressure: | 4-6bar |

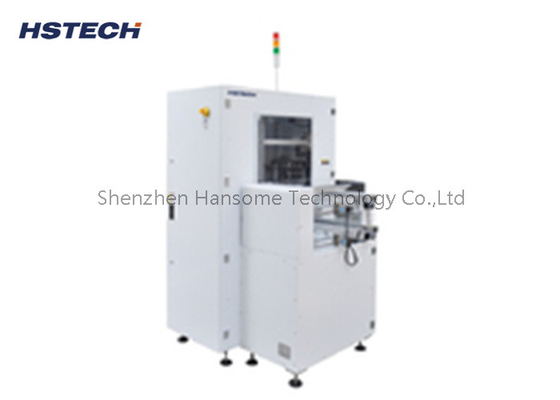

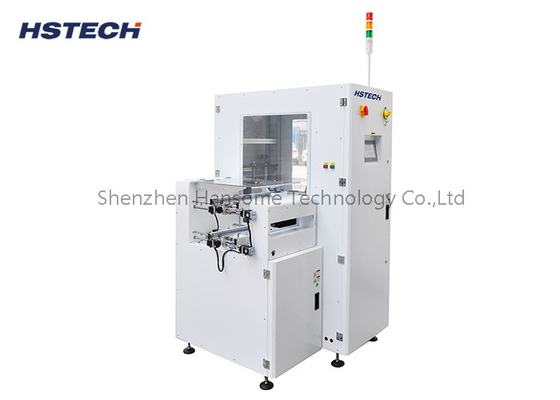

LED Control PCB Handling Equipment Automatic PCB Buffer SMT Line SPI AOI Buffer
This unit is used as a buffer after SPI and AOI buffer equipment.
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.
Model | HS-GH350 |
Transport height | 910±20mm |
Transportation direction | L~R, or R~L |
Board cycle time | Approx 20 seconds |
Magazine change over time | Approx 30seconds |
Track fixed side | Front side |
Operation side | Front side |
PCB thickness | Min 0.6mm |
Pitch selection | 1-4(10mm pitch) |
Power supply | 220V,50/60Hz,±10% |
Power | 0.05kW |
Air pressure | 4-6Bar |
Air consumption | Max 10L/min |
Number of magazines | Upper:1 magazine, Bottom side:1 magazines |
Signal | SMEMA |
Options | 1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Model | HS-HC250S | HS-HC330M | HS-HC390L | HS-HC460XL |
Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
Weight | 170kg | 230kg | 300kg | 330kg |
