| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460-CY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Linking Conveyor | Material: | Stainless Steel |
|---|---|---|---|
| Color: | White | Transport Belt: | ESD Flat Belt |
| Condition: | New | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |

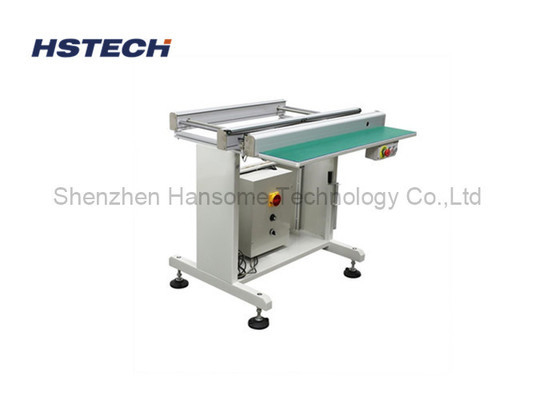

Stainless Steel Linking Conveyor PCB Handling Equipment for Smooth SMT Production Lin
The connection station is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
The docking station generally includes: a frame, two conveyor belts that rotate in parallel on the frame, and circuit boards are placed on the two conveyor belts for transportation. The existing conveyor belts are generally fixed in position on the frame, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, which is not conducive to conveying circuit boards of different sizes, making the applicability of the docking station low.

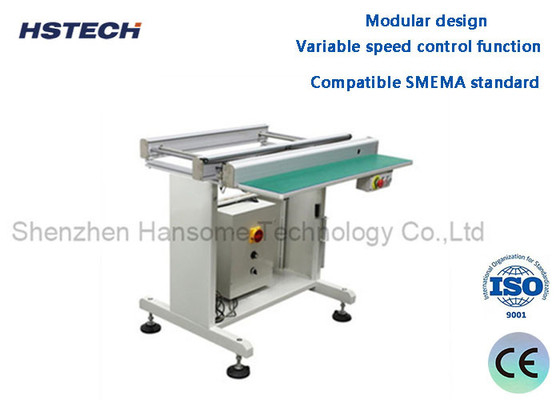

1, Modular design.
2, Iron square tube framwork, powder coating on surface.
3, Variable speed control function.
4, Sturdy structural design improves the stability of the equipment.
5, Use stainless steel screw,smooth and parallel width adjustment.
6, Compatible SMEMA standard.
| Model | HS-460-CY | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*460mm | |||||
| Width adjustment | Hand shake | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
1. Ensure that there are no foreign objects in the transportation part, belts, pulleys and transportation guide rails to ensure smooth and smooth transportation.
2. Refuel the transmission part, rack or width-adjusting screw regularly. Refueling must be performed in the stopped state.
3. In case of power outage, turn off the main power switch of the equipment immediately.
Packing:
