Automatic Alarm System Automatic Solder Paste Thawing Machine With FIFO Fuction

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-SP-6N

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Automatic Solder Paste Thawing Machine	Other Name:	Solder Paste Aging Machine
Voltage:	AC110V/AC220V, 50/60Hz	Air Supply:	0.4Mpa
Weight:	18kg	Warranty:	1 Year

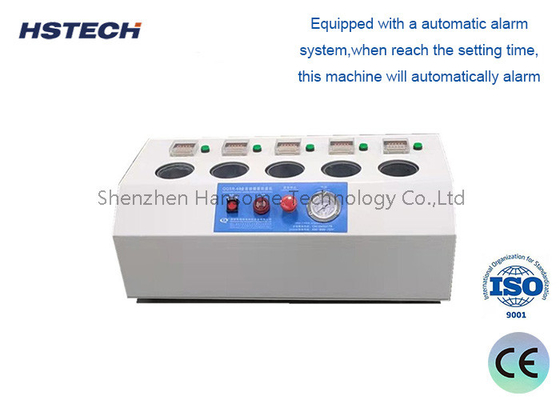

Automatic Alarm System Automatic Solder Paste Thawing Machine With FIFO Fuction

Introduction

Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.

Features

1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the slot and sink automatically,also it will release automatically when time is over.

2. With FIFO fuction.
3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.
4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

Specification

Model		HS-SP-6N
Control system		PLC
Assemblying parts		Import parts
Power		AC220V, 50Hz
Air Pressure		0.4Mpa
Placing tank		4 tanks
Machine Demension		700300220mm(WDH)
Gross Weight		18KG
