| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | TCK Series Thermal Profiler | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Type: | Automatic |

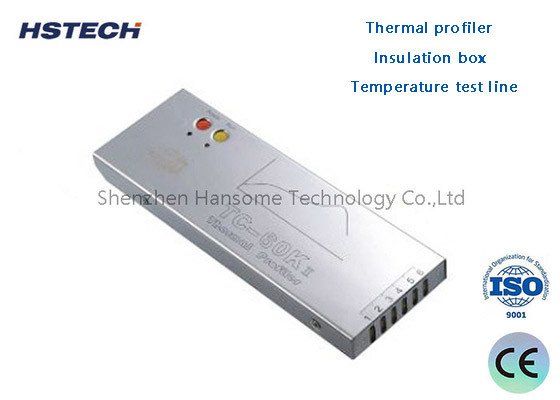

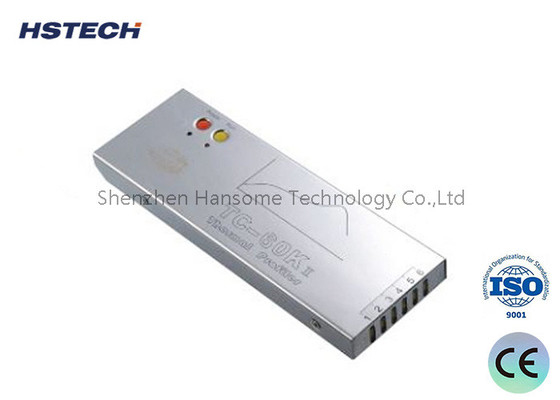

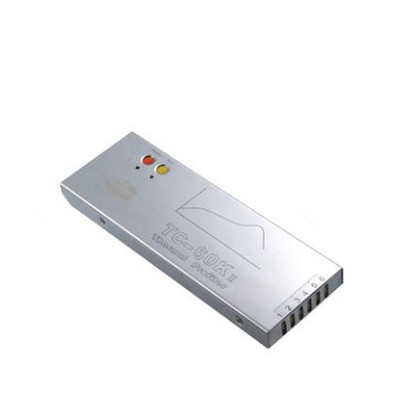

Manual, Specified Time Or Specified Temperature Start Mode TC Series Thermal Profiler
Standard Composition
1. Thermal profiler 2. Insulation box
3. Temperature test line 4. Data download line
5. Charger 6. Hi-temp adhesive tape
7. Software CD 8. “+” screwdriver 9. Tweezers
10. Insulated gloves 11.Solder wire
12. Scissors 13. Instrument box
14. User Manual 15. Acceptance Certificate
Main Technical Specifications:
1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:120000 point/channel, Can record 256 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—600℃ OR 0—1200℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤100mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 208(L)×75(W)×15(H)mm 208(L)×75(W)×19(H)mm
10,Insulation box:252(L)×88(W)×30(H)mm
11,Start Mode : Manual, specified time or specified temperature
12,Record mode: Monitor/Record
13,Connection mode:RS232/USB
14,Software version: e-DataPro 2.2
Software main screen
Product information setup
Solder information setup
Machine parameter setup
Data analysis:
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
Horizontal line and Vertical line setting
