| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-250DULD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Dual Rail PCB Unloader | Color: | White |
|---|---|---|---|
| PLC: | MITSUBISHI | Relay: | Schneider |
| Optoelectric Switch: | Omron | Driver Brand: | Meanwell |

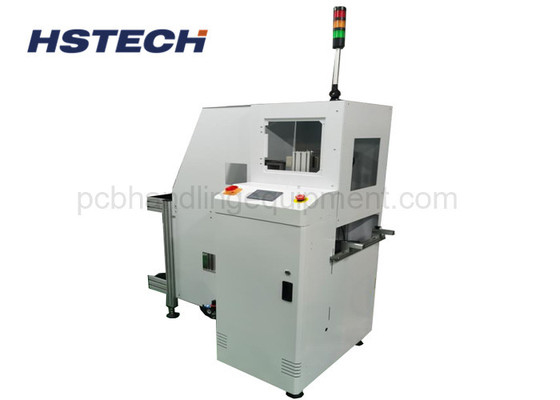

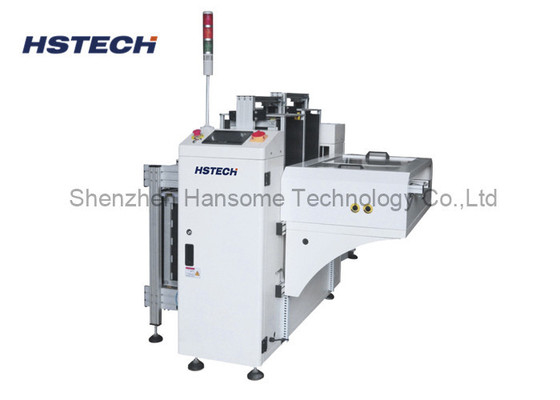

Tower Light Display Mitsubishi PLC Dual Rail PCB Unloader Standard Height For SMT
Application
This machine is dual rail operation, used to collect the PCBs to the magazines.
Specification
| Model | HS-250DULD |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features

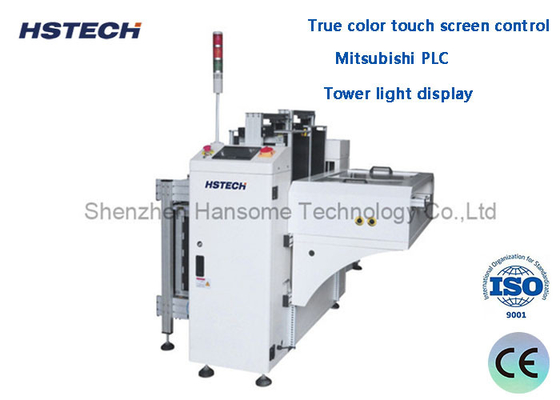

1, True color touch screen control.
2, Mitsubishi PLC.
3, Magazine capacity: top 1, bottom 1, or customized.
4, Selective pitch: 10mm,20mm,30mm,40mm.
5, PCB transport direction: L - R, or R - L,optional.
6, Manual/Automatic run mode selection.
7, Front rail fixed or rear rail fixed,optional.
8, Standard height for SMT application(920±20mm).
9, Tower light display.
10, SMEMA signal.
