Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment

Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment

  • Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment
  • Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment
  • Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment
Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-N100L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: NG/OK Unloader Color: White
Control: PCL And Touch Screen Magazine: Separately, Each Hold 2 Magazine
Warrany: 1 Year Display: 3 Color

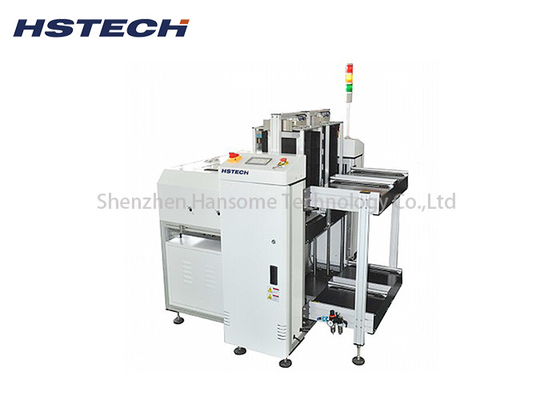

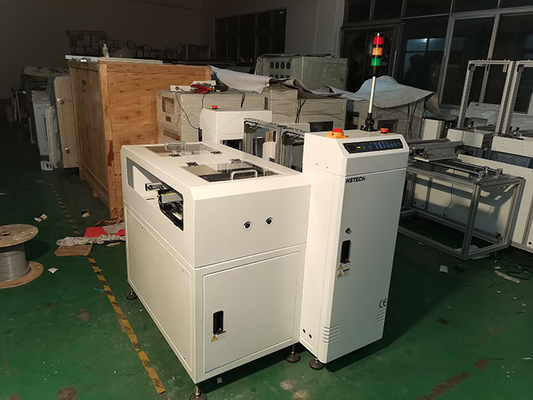

Soft Touch LED Membrane Control Panel Collection PCB NG/OK Unloader Equipment



Intorduction



This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.



Features



1, PLC programing control.

2, Using friendly ‘soft touch’ LED membrane control panel

3, Selectable pitch setting.

4, Toggle level clamps provided for magazine alignment.

5, Pneumatic pusher’s pressure regulated.

6, High throughput with short magazine change-over time.

7, Collect NG/OK board from AOI, automatic store the NG/OK boards.

8, Standard SMEMA communication interface.



Specification



Model: HS-N100M HS-N100L
Voltage: AC100V/220V, 50/60Hz
Size: M L
PCB Size(mm): (50x50)~(330x250) (50x50)~(450x330)
Magazine racks size(mm): 355*320*560 460*400*560
Magazine Qty Upper conveyor,1 pc; bottom conveyor 1pc
Air supply: 0.4~0.6Mpa,20L/Min max
PCB loading time: 6 seconds, or customized
Transport height: 900±20(mm)
Transport Direction: L-R or R-L (optional)
PCB thickness: Min 0.6mm
Up/down pitches: 1-4(10mm step)
Communication SMEMA signal
Machine Dimension(mm): 1550*1550*1250 1850*1780*1250
Gross Weight: Approx 220kg Approx 320kg
