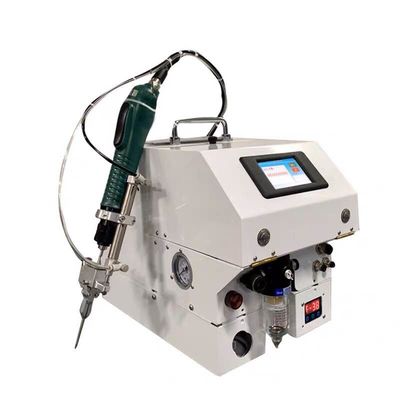

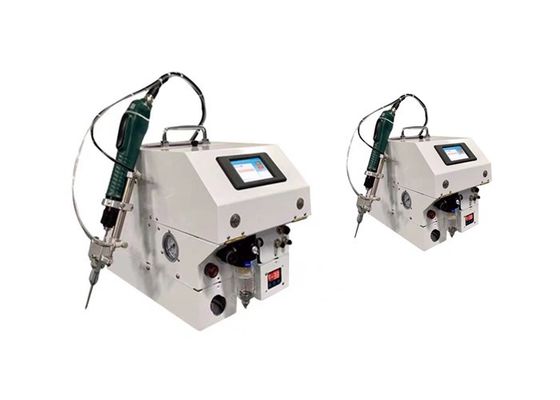

Handheld Screw Tightening Machine 40W With Auto Feeder

Handheld Screw Tightening Machine 40W With Auto Feeder
Handheld Screw Tightening Machine 40W With Auto Feeder

Large Image :  Handheld Screw Tightening Machine 40W With Auto Feeder

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-505
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Handhold Screw Lock Machine Application: Electric Screwdriver For Electronic Assembly Line
Apply Screws Size: M1-M5 Apply Screw Head: All Type
Screw Capacity: M2*6/5000PCS Screw Feeding Speed: 0.5S/pcs
High Light:

Handheld Screw Tightening Machine

,

Auto Feeder Screw Tightening Machine

,

40W Screw Fastening Machine

Handheld Screw tightening machine with auto screw feeder system



Application



Applicable to all kinds of electronic products such as toys, mobile phones, telephones, calculators, navigation, dash cam, audio, video and other products screw tightening application.



Features

1. High supply efficiency:Material speed up to 60 per minute, suitable for mass production,

save labor, save cost.

2. Good stability: screw one to send one, eliminate stuck material,Even if bad lead to material jam,

non - professional personnel can quickly solve the problem.

3. Only one hand operation is needed, and the screw lock and payment can be completed with a

gentle press, saving the time of taking and putting screws;

4. Easy to operate -- without professional training, novice can be skilled in operation, long-term operation will not be tired;

5. Flexibility and portability -- air feeder can be placed in any position where screws are needed.

Both on and off stage.

6.Touch screen: Direct contact screen control Settings, convenient and fast.



Specfication



Model HS-505
Screw capacity: M3*10/3000PCS
Efficiency: 50-80pcs/min
Screw feeding speed: 0.5s/pcs (standard screw)
Feeding type: Blowing
Feeding length: 1- 4Meter
Power supply: AC220V 50HZ
Power: 40W
Working pressure: 0.4Mpa-0.6Mpa
Weight: App 11KG
Dimension: 370*220*280mm
Noise Lower 65
