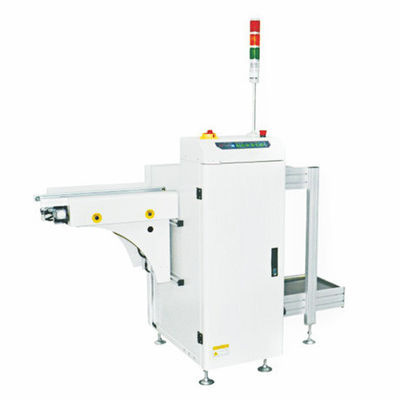

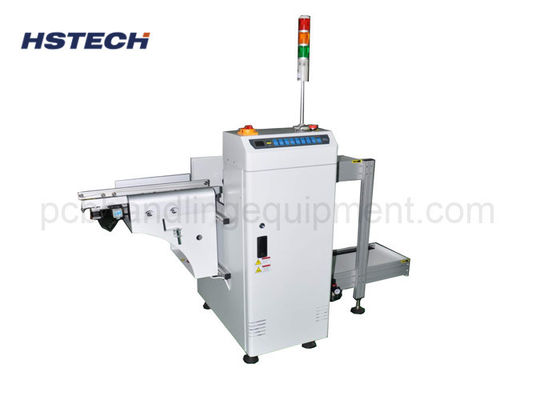

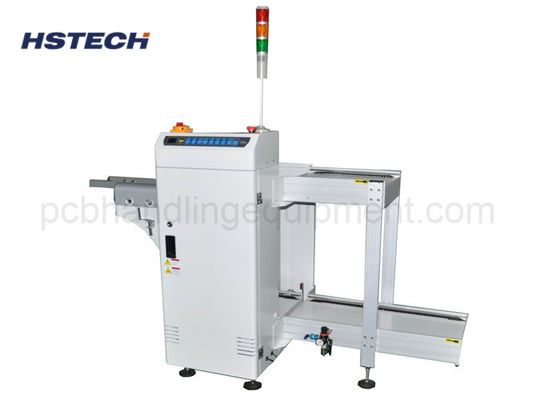

ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm

Certification
China Shenzhen Hansome Technology Co., Ltd. certification
China Shenzhen Hansome Technology Co., Ltd. certification
Customer Reviews
HSTECH's equipment totally fit our requirement, the machine working stable and no errors, it help us a lot during the electronic production, thanks, we like it!

—— Bradly

The machines assemblyed and packed very well,easy installation under the particular directions, more important the working efficiency and accuracy is over expected. We are happy with these equpiments, we will try new cases for you.

—— Jason

The cleaner are working very well, thanks for the service!

—— Emma

The parts we purchased with very good quality, your stock parts item is exhaustive and the service reaction is fast, it's really help.

—— Eduardo

I'm Online Chat Now

ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm

ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm
ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm

Large Image :  ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-UD330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: PCB Unloader Other Name: SMT Line Unloader
PCB Size: 50*50~450*330mm PCB Unloading Time: Approx 6 Seconds
Magazine Change Over Time: Approx 30 Seconds Power Supply: AC220V, 50/60Hz
PCB Thickness: Min 4mm Communication: SMEMA
High Light:

Tower Light PCB Unloader

,

ZD Motor Driven PCB Unloader

,

Transport Height 910mm SMT Unloader

3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader





Features



1, Mitsubishi PLC

2, ZD motor driven.

3, Thicker transporting conveyor belt.

4, 3 magazines for changing over, top side one magazine, button side 2 magazines.

5, LED button control mode with 3 lolor light display.

6, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.

7, Smooth and parallel width adjustment with hand crank.

8, Precision pusher push the pcbs to the magazines

9, Top and bottom pneumatic clamps to secure magazine rack.

10, SMEMA compatible.



Application



This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.





Specification



Function This unit is used for unloading the PCBs.
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine change over time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Conveyor speed 0.5-20M/min or customized
Pitch selection 1-4(10mm pitch)
Signal SMEMA



Model HS-UD250 HS-UD330 HS-UD390 HS-UD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine dimension 1900*800*1200mm 2320*880*1200mm 2620*940*1200mm 2620*1080*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 220kg 280kg 320kg
