| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-ST330L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Stacker | Other Name: | Bare Board Unloader |
|---|---|---|---|
| Power Supply: | AC110V/220V,single Phase | Program: | PLC |
| Control Mode: | Control Button Or Touch Screen | Air Pressure: | 0.6Mpa |
| PCB Thickness: | 0.6~4.0mm | Single: | SMEMA |
| High Light: | 0.6Mpa PCB Handling Equipment,PLC PCB Handling Equipment |
||

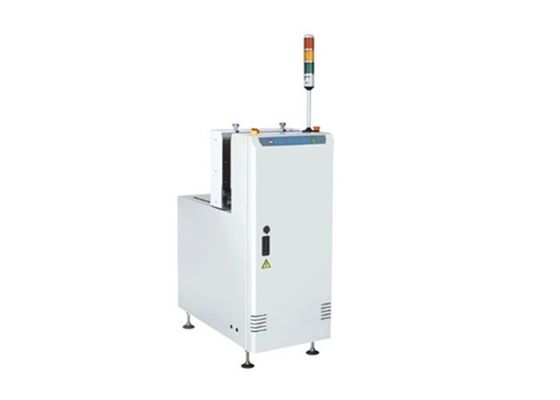

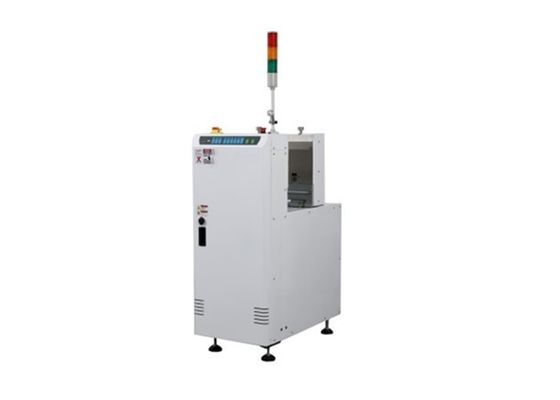

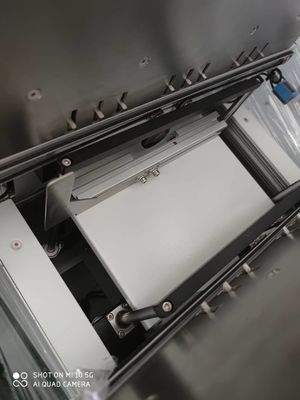

Panasonic PLC control Smart Button Control By-Pass Function PCB Destacker
Application
This machine used for collecting the bare boards by receiving the upstream machine signal, and lift up them on the stacker rail.
Features
1.PLC program control.
2.Aluminium structure, heavy bottom design to prevent shift.
3.Pass-through mode provided.
4.Only taken 10 seconds to change product line.
5.User friendly ‘soft touch‘ LED control panel,or button.
6.Uninterrupted Loading.
7.ESD transporting belt.
8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door
9.SMEMA compatible.
Specification
| Function | used for collecting the bare boards by receiving the upstream machine signal, and lift up them on the stacker rail. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-ST350S | HS-ST530XL |
| Efficient PCB length | 50~350mm | 50~530mm |
| Transport PCB width | 50~350mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
