AC380V 77L Ultrasonic Cleaning Machine SUS Stainless Steel 3000W Heating Power

AC380V 77L Ultrasonic Cleaning Machine SUS Stainless Steel 3000W Heating Power
AC380V 77L Ultrasonic Cleaning Machine SUS Stainless Steel 3000W Heating Power AC380V 77L Ultrasonic Cleaning Machine SUS Stainless Steel 3000W Heating Power

Large Image :  AC380V 77L Ultrasonic Cleaning Machine SUS Stainless Steel 3000W Heating Power

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-2030H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam
Delivery Time: 15~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Name: Ultrasonic Cleaning Batch Voltage: AC380V
Machine Body: SUS 304 Structure Tank Capacity: 77L
Ultrasonic Power: 0-1200W Adjustable Drying Model: Hot Air Blowing
Drying Time: Max99min Adjustable Warranty: 1 Year
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

AC380V 77L SUS Stainless Steel 3000W Heating Power Ultrasonic Cleaning Machine



Introduction

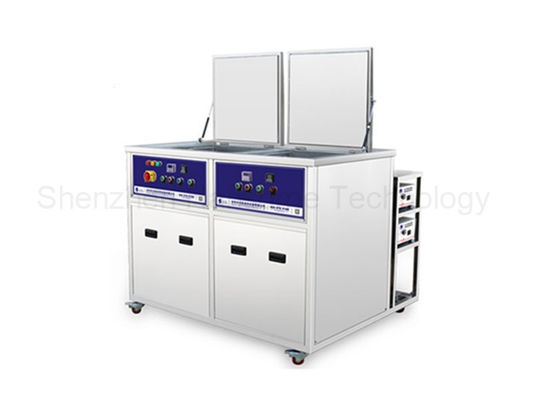

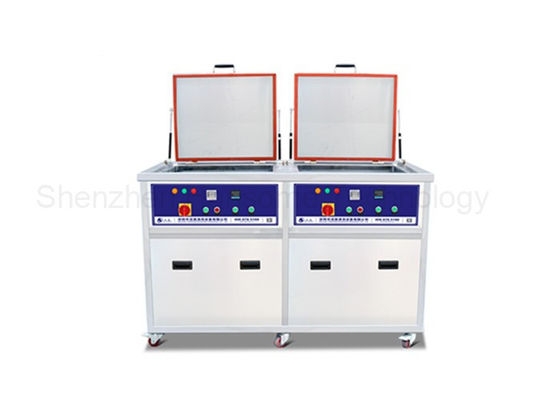

This ultrasonic cleaning tank powered by the industrial transducers, it stronger vibration, stable output, good durability with powerful cleaning effect. The machine including double tanks, with cleaning and drying function, one tank for cleaning and the other for drying. The machine can working all the time per day, which ensure the production efficiency. It's widely used to cleaning hardware, watch, glasses, and many other products with Oil and dirt.



Features



1, Thicker sus304 stainless steel machine, stable and durable.

2, Tank storage 77L, with digital timer and heater controller.

3, Heating temperature can be adjustable, max to 95℃.

4, With Stainless steel basket, max can load 200KG products.
5. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement.
6, Optional ringsing function, also optional spraying cleaing for higher cleaing requirement.
7. Transducer using high quality Korea brand.
8. Self-developed control panel PCB.
9. Generator is high quality techinique designed and produced which have been used thousands of units by our USA and Europe customers.
10. Using famous brand CNP circulation pump brand name.



Specification



Model: HS-2024H
Ultrasonic power: 0~1200W
Ultrasonic frequency: 28KHz/40KHz,optional
Heater: 20°C to 95°C adjustable
Heating power: 3000W
Power supply: AC380V, 3 phase 60Hz
Inner tank size: 550*400*350mm
Clean basket Size: 500*380*300mm
Clean basket load capacity: Max 200KG
Max tank capacity: 77L
Transducer: 24pcs
Timer: 1~99hours adjustable
Ultrasonic generator: External generator
Drying tank capacity: 77L
Drying method: Air blower
Drying power: 3000W
Drying time: LED display, adjustable
Drying temperature: Environment temp~150℃
Finished drying alarm: Equipped
External machine body Material: SUS304 stainless steel(1.0mm)
Internal machine body Material: SUS304 stainless steel(2.0mm)
Machine size: 1600*700*1100mm



Application



Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
