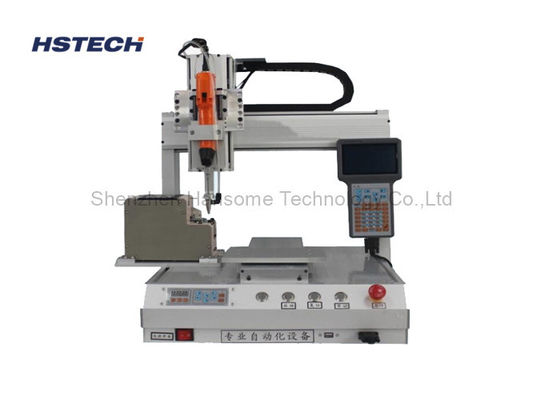

Photoelectric Switch Desktop Screw Fastening Machine 3 Axis Step Motor

Photoelectric Switch Desktop Screw Fastening Machine 3 Axis Step Motor
Photoelectric Switch Desktop Screw Fastening Machine 3 Axis Step Motor

Large Image :  Photoelectric Switch Desktop Screw Fastening Machine 3 Axis Step Motor

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Desktop Screw Lock Machine Material: Titanium And Titanium Alloy
Axis: 3 Axis Suitable Screws: M1-M5
Motor: Step Motor Weight: 55kg
High Light:

desktop screw machine

,

screw locking tightening machine

Step Motor Photoelectric Switch Screw Locking / Fastening Machine with 3 Axis



Introduction



This screw lock machine is used to lock the screws automatically to improve the production efficiency.



Features



1, Automatic locking, 3 axis working range, with fixed fixtures.

2, Desktop and visible operation, can connect the automatic production line.

3, Teach pendant programing, step motor and timing belt driving system.

4, Suitable for screws specification M1-M5.

5, Widely application, can used to many industry, like electronic production, top, LED light, vehicle electronics, toyes, power supply,

PC keyboard, etc.

6, Support CAD, corelDRAW format file input.



Specfication



Model HS-SL331
Power supply AC110V/220V, 50/60Hz
X/Y/Z working range 300/300/100mm
XYZ speed Max XY:600mm/s,Z:300mm/s
Y platform 190*150mm
Repeat accuracy 0.02mm
Motor Stepper motor(Shinano Kenshi brand)
Driven system Timing blet for X/Y, Z axis screw
Document support CAD,CorelDRAW
Loading capacity X/Y:10kg,Z:5kg
Linear Guide HIWIN(Taiwan brand)
Photoelectric switch PEPPERL+FUCHS(Germany brand)
Cylinder AirTAC
Suitable screws M1 - M5
Machine size 720*685*597mm
Gross weight 75kg
