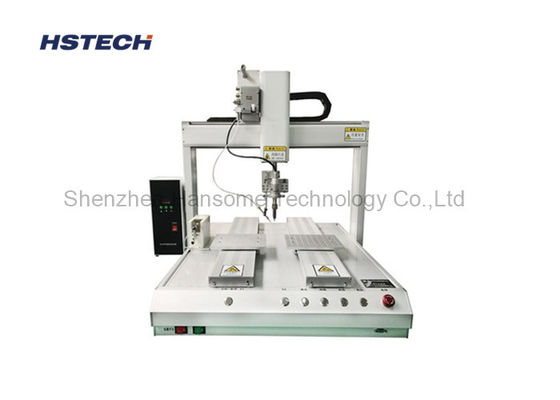

Extension Automatic Soldering Robot 5 Axis Including 360 Rotation Storage

Extension Automatic Soldering Robot 5 Axis Including 360 Rotation Storage
Extension Automatic Soldering Robot 5 Axis Including 360 Rotation Storage

Large Image :  Extension Automatic Soldering Robot 5 Axis Including 360 Rotation Storage

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S5331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Automatic Soldering Robot Axis: 5 Axis
Platform: Double If Rotation: Yes
Soldering Head: Single Head After-sales Service Provided: Video Technical Support
Usage: Pcb Soldeing,Welding,Circuit Board Soldering Solder Wire Diameter: 0.8,1.0,0.5,0.6,1.2 (mm)
High Light:

automated soldering equipment

,

robotic soldering machine

5 Axis Including 360 Rotation Storage Extension Automated Soldering Equipment



Introduction



This equipment is a 5 axis single head automatic soldering machine, X axis, double Y platform,Z axis and 360 degree rotation R axis.



Features



1, The moving guide is the high precision and high quality Taiwan HIWIN brand linear guide.
2, Multi-axis robot with high precision stepper motor drive and the advanced motion control algorithm, it effectively improve the positioning accuracy and repeat precision.
3, Flexible soldering, available for spot soldering, drag soldering and other functions.
4, The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
5, Soldering program can be copied, save the programing time.
6, The machine can store 99 sets operation program, can solder 99 different products with the same machine.
7, This equipment has the function for automatic cleaning, extend the lifespan of the solder iron, improve the soldering quality.
8, Through an external I / O interface, to achieve real-time control of the soldering robot, intelligent control system, execute the error alam & high-speed motion shockproof functions. Intelligent master program, achieve automation and intelligent soldering process.



Specification



Model HS-S5331R
Power supply Meanwell driver AC110V/220V
Air pressure 0.45-0.5Mpa
Axis 5





Moving range


X 500mm
Y1 300mm
Y2 300mm
Z 100mm
R 360degree



Moving speed
X/Y1/Y2 1-600mm/s
Z 1-300mm/s
R 1-100mm/s
Transport method Linear guide
Repeat accuracy ±0.05mm
Platform load capacity 10kg
Z Axis load capacity 5kg
Y platform size 190*150mm
Heater power 150W
Edit mode Handle panel
Program capacity 99
Communication port RS232
Feeding Single tin feeding system
Solder tin diameter 0.3-1.5mm
Machine dimension 720*580*645mm
Net Weight 65kg
