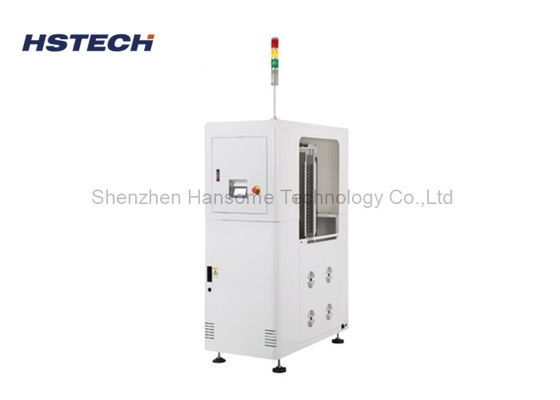

Standard Height PCB Handling Equipment Store 20 Pcs PCBs PCB Buffer Machine

Standard Height PCB Handling Equipment Store 20 Pcs PCBs PCB Buffer Machine
Standard Height PCB Handling Equipment Store 20 Pcs PCBs PCB Buffer Machine

Large Image :  Standard Height PCB Handling Equipment Store 20 Pcs PCBs PCB Buffer Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-390BF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Buffer Machine Storage Capacity: 20pcs
Usage: Buffer Fuction Between Machines Condition: New
Material: Stainless Steel Warranty: 1 Year
High Light:

smt assembly equipment

,

pcb loader and unloader

Store 20 pcs PCBs Standard Height PCB Buffer Machine for Board Handling



Features



1, This machine is used as a buffer between SMT machines.

2, MITSUBISHI PLC control system, with automatic alarm function.

3, Stable design structure.

4, True color LED touch screen control panel.

5, With FIFO, LIFO, NG/OK and by-pass fuction.

6, Customzied as customer's request to equip with conveyors for front or rear side.

7, Max can store 20pcs boards.

8, High precision screw driver.

9, Use high power 120W motor to drive the magazine.

10, 4 pitches selection, 25mm pitch step.

11, Standard SMEMA.



Specification



Model HS-390BF
PCB Dimension 50*50~500*390
Transport belt Multiple level 3.5mm ESD belt
Power Supply AC100-230V,single phase,max 300A
Air pressure 4-6bar,max 10L/min
Transmission height 920±20mm
Transport direction left to right, or right to left
Step pitch option 1-4(25mm step pitch)
Stocking capacity 20pcs
PCB thickness Min 0.4mm
Machine Dimension 600*920*1200mm
Weight 190kg
